Quantum 864

Description

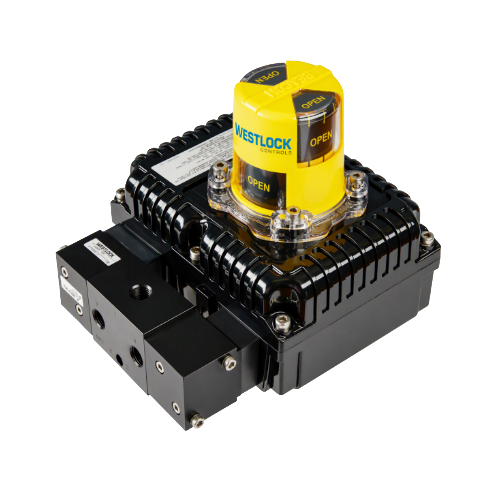

NEMA 4-4X, Engineered Resin or Stainless enclosure for dual coil SOV or 4 switch option with single coil SOV

  • Quantum enclosures integrate position sensors and low power solenoid valves into a single unit
  • Solenoid coils integrated within Quantum housing
  • Choice of factory pre-wired 3 and 4 way Falcon solenoid valves.
  • Solenoid valves with a choice of Cv ratings and coil voltage
  • Strong durable Beacon™ offers 360° visual indication, available in a choice of styles and colors.
  • Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position sensors.
  • Terminal strips are pre-wired and numbered with generous working space for ease of use.
  • Additional conduit for easy field wiring and mounting accessories as standard.
  • Standardized mounting pattern for easy adaptation to common bracketry.
  • Robust stainless steel conduit entry inserts provide protection from excessive torque and reliable grounding.
  • NAMUR shaft output compliant to VDI/ VDE 3845 available.
  • Engineered resin enclosure is robust yet lightweight; allows broad operating temperatures and provides exceptional chemical, UV and impact resistance.
  • Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments.
  • Rugged stainless steel enclosure.
Technical data
Agency Approvals:
Enclosure standards (ANSI/NEMA 250)
All enclosures Type 4, 4X
Switches
V3 SPDT Mechanical Switches
DPDT Mechanical Switches
Enclosures Engineered resin
Falcon Solenoid Valves
Cv: Choice of 1.4, 2.3, 3.5
Materials Brass, aluminum and stainless steel
